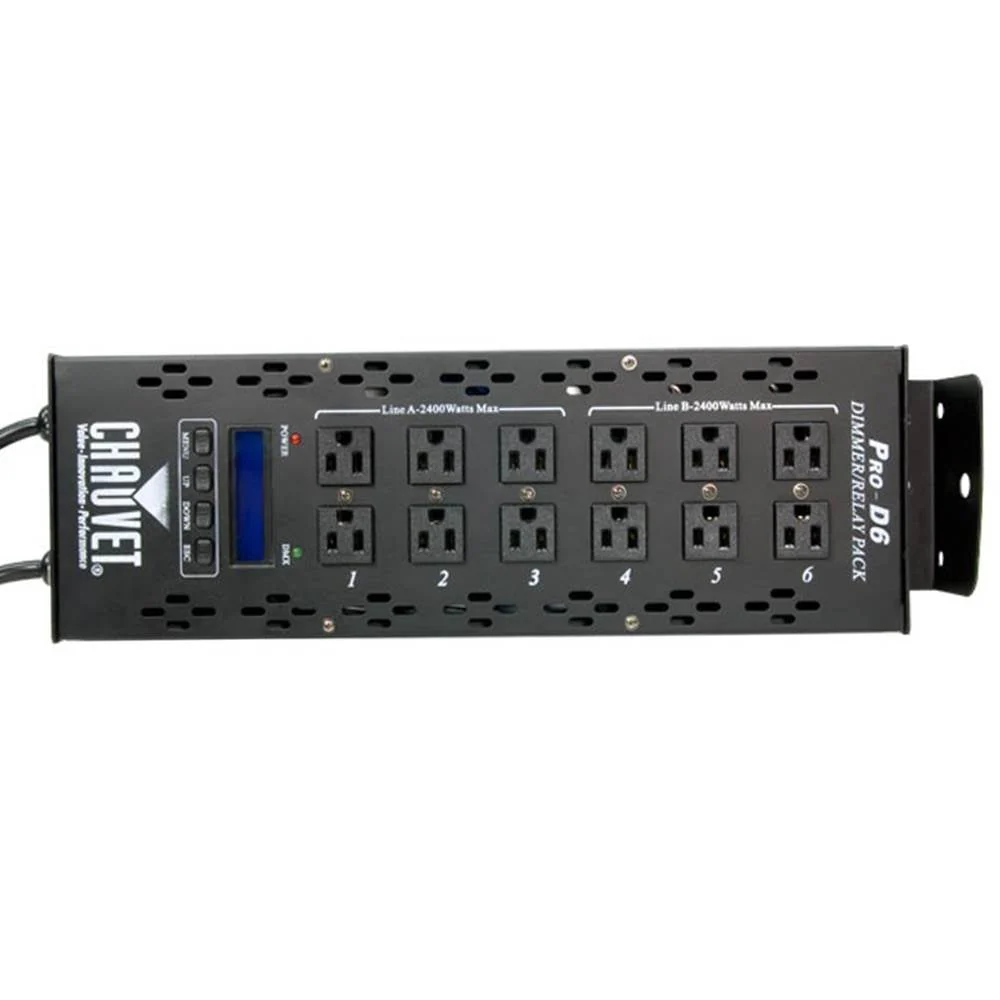

CHAUVET DJ Pro D6 6-Channel DMX-512 Dual 20A Power Dimmer Switch Relay Pack

The most versatile dimmer out there, this 2 Chauvet DJ Pro D6 6 Channel DMX Dual Dimmer Relay Pack is what you're missing from your setup.

It works on multiple voltages simultaneously and comes fitted with a 20 amp connector. It's a 6 channel dimmer and can be set as either dimmer or relay. The pack features a variable electronic dimmer from 0 to 100 percent, optional square, switch, or linear dimming curves for each channel, a dual 20 A power lines, and it includes 2 Edison plugs per channel.

The Chauvet DJ Pro D6 6 Channel DMX Dual Dimmer Relay Pack is compact, lightweight, and adds major functionality to your gigs.

• 6 channel DMX dimmer/relay pack
• Increase control by setting each channel to any DMX address
• Increase flexibility by setting each channel as either a dimmer or relay
• Features a variable electronic dimmer (0 to 100 percent)
• Optional square, switch or linear dimming curves for each channel
• Dual 20 A power lines (requires 2 separate circuits on the same phase)
• Increase options with an individual switch, circuit breaker and plug per line
• Accommodates different input voltages simultaneously
• Includes 2 Edison plugs per channel
• Specifications:
• DMX channels: 6
• DMX connectors: 3 pin
• Input voltage: 100 to 240 VAC, 50/60 Hz (auto ranging)
• Approvals: CE
• Output: 10 A (per channel), 20 A (per power line), 40 A (max)
• Break size: 20A 250V
• Dimensions: 18 x 5.8 x 3.8 inches
• Weight: 9.3 pounds
• Manufacturer warranty: 2-year warranty
